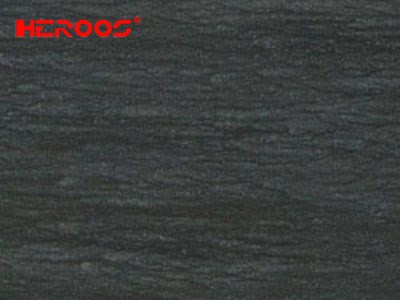

ASBESTOS SHEET WITH WIRE MESH

HEROOS-400M is made from selected asbestos fiber, natural rubber, filling material and dye. A price worthy quality of dependable performance, plus adaptability to many sealing requirements makes this jointing the most economical sheet packing choice in the wide range of industrial fields. 400MG is with both graphite coating, 400MMG is reinforced by wire mesh with both graphite coating.

PARAMETER

Model	400M	400MG	400MMG
Tensile strength≥Mpa	19	19	25
Aging coefficient	0.9	0.9	0.9
Loss on ignition ≤%	28	28	28
Compressibility ≥%	12±5	12±5	12±5
Recovery ≥%	45	45	45
Density g/cm3	1.8~2.0	1.8~2.0	2.0~2.2
Tmax: ℃	500	550	550
Pmax: Mpa	12.0	12.0	20
Normal color	Purple red	Graphite	Graphite
Resistance to media	Water, seawater, steam, diluted acid & alkali, gases, alcohols, salt solutions etc. under temperature and pressure.
