Description

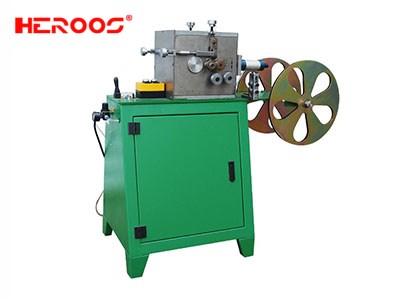

EYELETS METAL TAPE SHAPER
MACHINE FOR REINFORCED GRAPHITE GASKET
HEROOS-M203 machine produce eyelet to reinforce cut gasket. both inner eyelet and outer eyelet are available. eyelet diameter is manually configured.
with two sets of shaping molds, lifetime: >5000kg eyelets( select two from 2.0,2.5,3.0,3.2,4.0,4.5)
customize sizes are available on request.
PARAMETERS
| Model | HEROOS-M203 |
| Eyelet Width | 2.0 2.5 3.0 3.2 4.0 4.5 |
| Total Power | 0.20kw |
| Voltage | 380V/220VOptional |
| Air Pressure | 6–8 |
| Linear speed | 80mm/s |
| Dimension | 1070*510*800mm |
| Weight | 160 kg |
For more information of Eyelets metal Tape shaper, Reinforced Graphite Gasket Machine
please email to : sales@heroos.com cixiseal@gmail.com WhatsApp:+8615355846467
we’ll contact you in the shortest time. Thanks!
