Graphite Sheet with Tanged Metal

Description

GRAPHITE SHEET WITH TANGED METAL

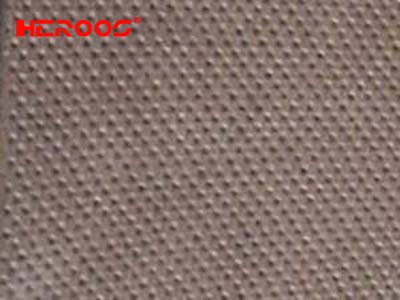

Graphite Sheet with Tanged Metal is made of expanded flexible graphite HEROOS-440, reinforced by a tanged stainless steel-carrier of 1.4301 (304) or 1.4401 (316), Nickel, 0.10mm~0.12mm thick, graphite content of more than 98 %, graphite bulk density 1.0 g/cm3.

APPLICATION

Made for various gaskets.

Suitable for Petrochemical, Mining, Vessels, Boilers, Piping and Duct, Pumps and Valves, Flanges,

PARAMETER

Temperature:   -200 up to 550℃

Pressure:      up to 500 bar

PH Range:      0 – 14

BENEFIT

Permanently elastic, even in hot-cold cycles over the entire temperature range, no aging, no brittleness, no hot or cold flow, long time uniform compressibility and resiliency independent of temperature.

MEDIA

Steam, mineral oils, heat transfer oils, hydraulic oil, fuel, water, seawater, freshwater etc.

DIMENSION

1000 x 1000 x 1.0 ; 1.5 ; 2.0 ; 3.0mm

1000 x 2000 x 1.0 ; 1.5 ; 2.0 ; 3.0mm

1500 x 1500 x1.0 ; 1.5 ; 2.0 ; 3.0mm

1500 x 2000 x1.0 ; 1.5 ; 2.0 ; 3.0mm
