Graphite Sheet with Wire Mesh

Description

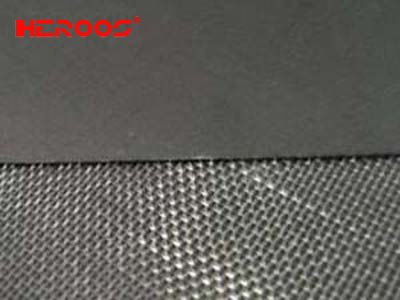

GRAPHITE SHEET WITH WIRE MESH

Graphite Sheet with Wire Mesh is made of expanded flexible graphite HEROOS-440, reinforced by a metal mesh of 1.4301 (304) or 1.4401(316) or CS (Carbon steel), graphite content of more than 98 %, graphite bulk density 1.0 g/cm3.

APPLICATION

Made for various gaskets.

Suitable for Petrochemical, Mining, Vessels, Boilers, Piping and Duct, Pumps and Valves, Flanges,

PARAMETER

Temperature:   -200 up to 550℃

Pressure:      up to 400 bar

PH Range:      0 – 14

BENEFIT

Permanently elastic, even in hot-cold cycles over the entire temperature range, no aging, no brittleness, no hot or cold flow, long time uniform compressibility and resiliency independent of temperature.

MEDIA

Steam, mineral oils, heat transfer oils, hydraulic oil, fuel, water, seawater, freshwater etc.

DIMENSION

1000 x 1000 x 1.0 ; 1.5 ; 2.0 ; 3.0mm

1000 x 2000 x 1.0 ; 1.5 ; 2.0 ; 3.0mm

1500 x 1500 x1.0 ; 1.5 ; 2.0 ; 3.0mm

1500 x 2000 x1.0 ; 1.5 ; 2.0 ; 3.0mm
