Description

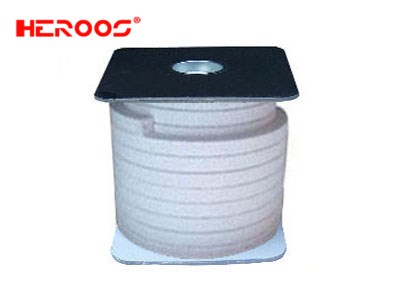

PTFE FILAMENT PACKING
Made of sintered, highly stretched PTFE multifilament yarns HEROOS LENMENS with thoroughly PTFE impregnation. The packing is then re-impregnated with a mix of PTFE emulsion during braiding operation. Good resistance to compression and to extrusion, high structural and cross-sectional density.
CONSTRUCTION
HEROOS-P552R PTFE Filament Packing with Silicone Core
High red elastic rubber core can absorb vibration, to control leakage.
APPLICATION
Especially suited for high pressure valves, plunger pumps, agitators, mixers etc. and where contamination is not permitted.
PARAMETER
| Style | HEROOS-P552, HEROOS-P552R | |
| Pressure | Rotating | 20 bar |
| Reciprocating | 150 bar | |
| Static | 250 bar | |
| Shaft speed | 10m/s | |
| Density | 1.75 g/cm3 | |
| Temperature | －150~+260°C | |
| PH range | 0~14 | |
PACKAGING
in coils of 5 or 10 kg, other weight on request;
as precut length;
